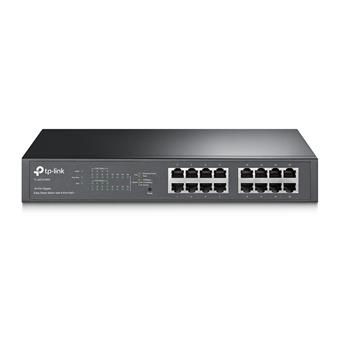

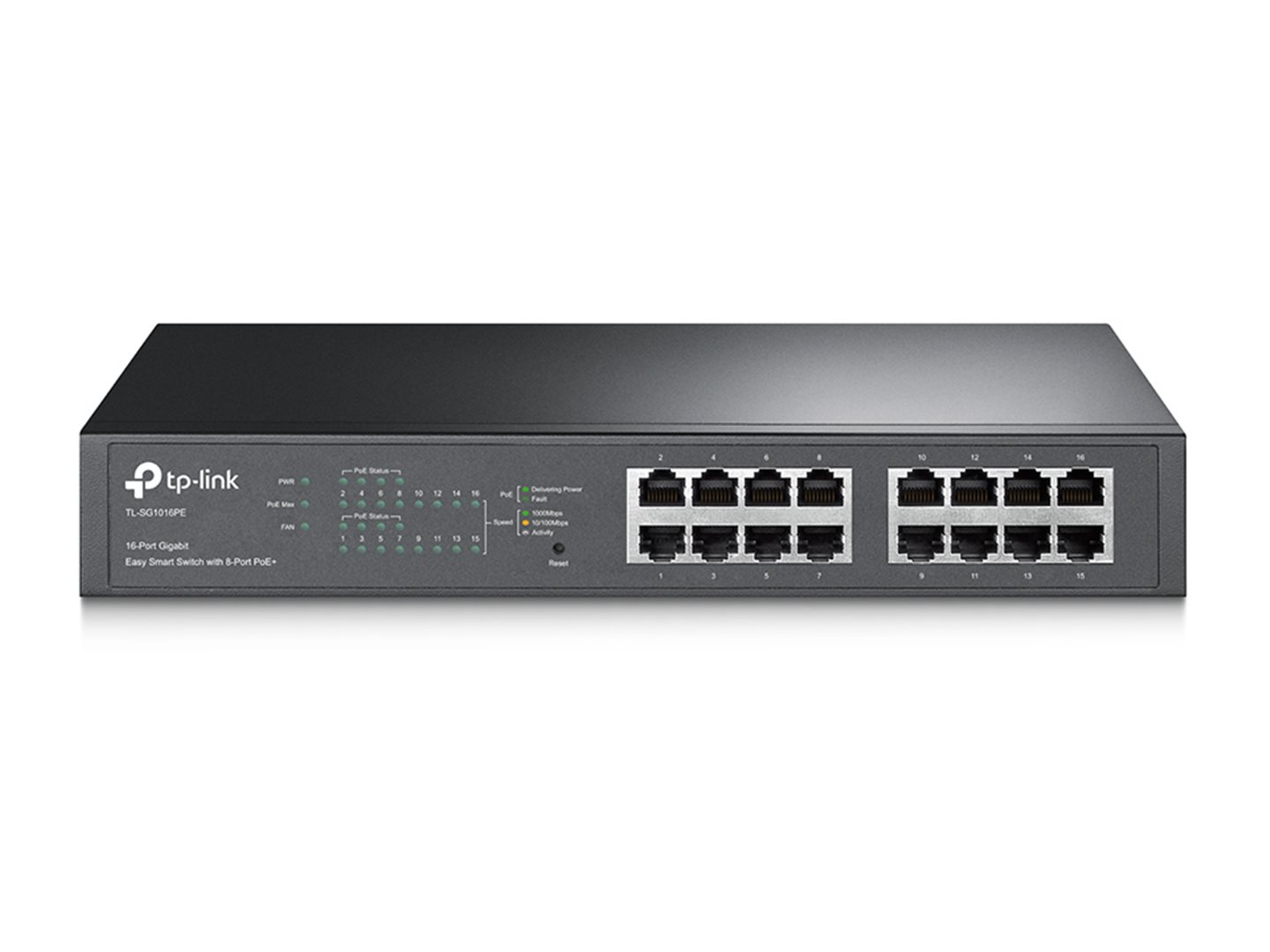

TP-Link TL-SG1016PE 16xGb, (8xPOE+) easy smart rack switch 150W

TL-SG1016PE

• 16-Port Gigabit Desktop/Rackmount PoE+ Easy Smart Switch, 16 Gigabit RJ45 portov including 8 PoE+ portov, 110W PoE Power supply, PoE Management, MTU/Port/Tag-based VLAN, QoS, IGMP Snooping

Inteligentný switch so 16 gigabitovými portami PoE, 8 portov podporuje PoE+ TL-SG1016PE

• 16 portov RJ45 s rýchlosťami 10/100/1000 Mb/s
• 8 portov podporuje PoE+ pre prenos dát a napájanie cez jeden kábel
• Funguje so zariadeniami, ktoré spĺňajú normu IEEE 802.3af/at a pomáha pri rozširovaní domácich a kancelárskych sietí
• Pripojenie v štýle „plug-and-play“ a jednoduché nastavenie siete
• Konfiguráciu uľahčuje webové používateľské rozhranie a utilita pre správu
• HARDWARE FEATURES

Štandardy a protokoly: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface: 16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media: 10BASE-T: UTP kategórie 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
100BASE-TX: UTP kategórie 5, 5e cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
1000BASE-T: UTP kategórie 5, 5e, 6 alebo káble (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
Fan Quantity: 1
Power Supply: 100-240VAC, 50/60Hz
Power Consumption: Maximum: 124.4W (220V/50Hz)
PoE Ports (RJ45): Štandard: 802.3 at compliant
PoE Ports: Port 1- Port 8
PoE Power Budget: 110W
Dimensions ( W x D x H ): 11.6*7.1*1.7 in. (294*180*44 mm)

• PERFORMANCE

Switching Capacity: 32Gbps
Packet Forwarding Rate: 23.8Mbps
MAC Address Table: 8K
Packet Buffer Memory: 4.1Mbit
Jumbo Frame: 9KB

• SOFTWARE FEATURES

Quality of Service: Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features: IGMP Snooping V1/V2/V3
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN: Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Management: Web-based GUI
Easy Smart Configuration Utility
Transmission Method: Store-And-Forward

• OTHERS

Certification: FCC, CE, RoHS
Package Contents: TL-SG1016PE
Power Cord
Installation Guide
Resource CD
Rackmount Kit (19")
Rubber Feet
System Requirements: Microsoft® Windows® for running Utility
Environment: Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Hlučnosť priamo pri zariadení (tolerancia 1-3 cm od motora vetráka) je 60 Db, vo vzdialenosti cca 1 metra je to 42-45 Db
