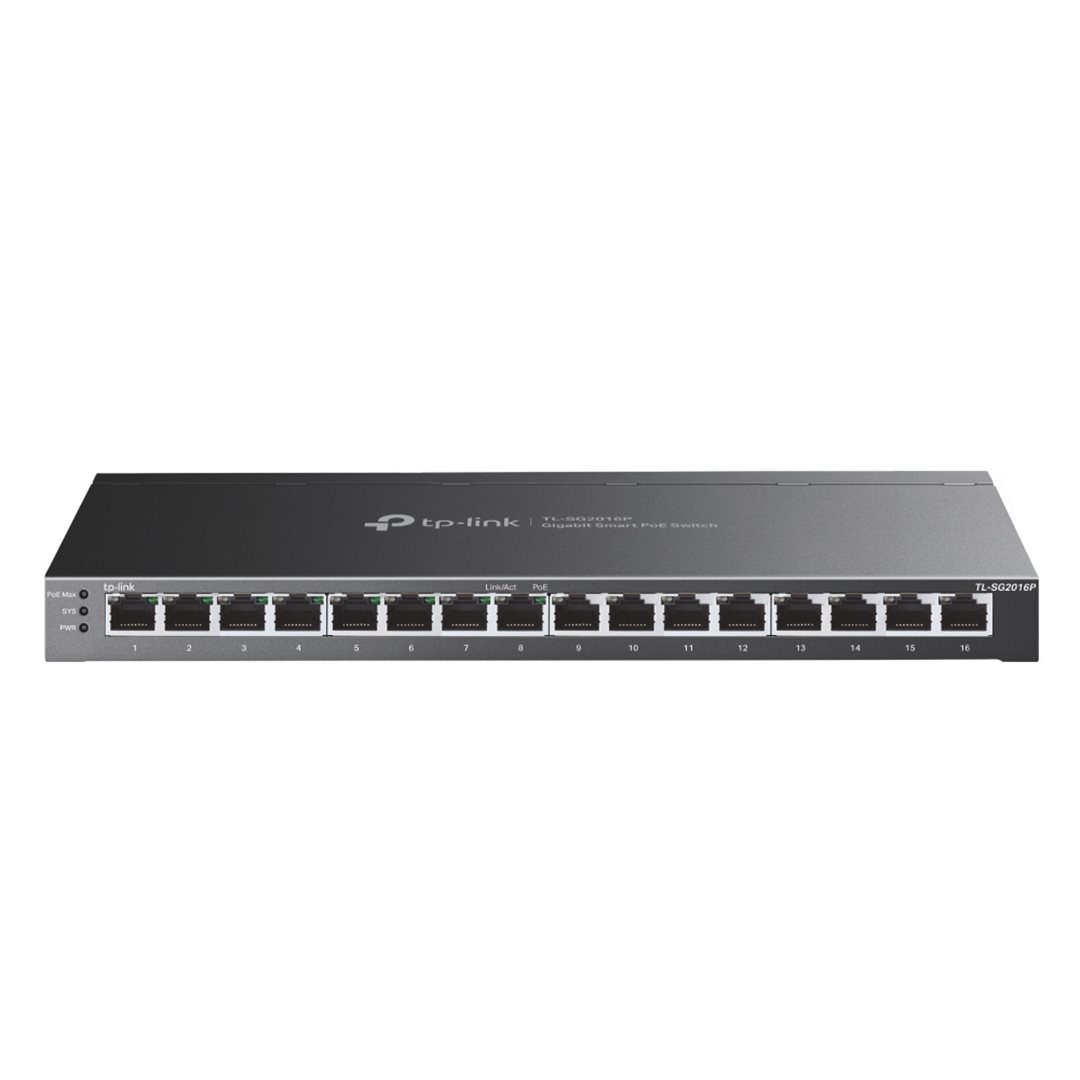

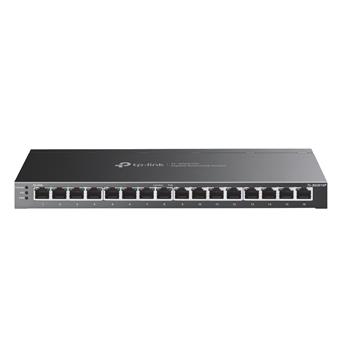

TP-Link SG2016P 16xGb(8xPoE+) 120W smart switch Omada SDN

Model: TL-SG2016P

HARDWARE FEATURES
Štandards and Protocols:

• IEEE 802.3i
• IEEE 802.3ab
• IEEE 802.3ad
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3x
• IEEE 802.1d
• IEEE 802.1s
• IEEE 802.1w
• IEEE 802.1q
• IEEE 802.1p
• IEEE 802.1x

Interface:

• 16× 10/100/1000 Mbps RJ45 Ports (Ports 1-8 Support 802.3at/af PoE+)
• Auto-Negotiation/Auto MDI/MDIX

Network Media

• 10BASE-T: UTP kategórie 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP kategórie 5, 5e alebo cez kábel (maximum 100m)

Fan Quantity

• Fanless

Power Supply

• External Power Adapter (Output: 53.5 VDC/ 2.43 A)

PoE Ports (RJ45)

• Štandard: 802.3af/at compliant
• PoE Ports: 8 Ports
• Power Supply: 120 W*

Dimensions ( W x D x H )

• 11.3 x 4.4 x 1.0 in (286 x 111.7 x 25.4 mm)

Max Power Consumption

• 146.5 W (110 V/60 Hz) (s 120 W PD connected)

Max Heat Dissipation

• 499.98 BTU/hr (110 V/60 Hz) (s 120 W PD connected)

PERFORMANCE
Bandwidth/Backplane:

• 16 Gbps

MAC Address Table:

• 8k

Packet Buffer Memory:

• 4.1 Mbit

Jumbo Frame:

• 9 KB

SOFTWARE FEATURES
Quality of Service:

• 802.1p CoS/DSCP priority
• 8 priority queues
• Priority Schedule Mode

- SP (Strict Priority)
- WRR (Weighted Round Robin)

• Queue Weight Config
• Bandwidth Control

- Port/Flow-based Rating Limit

• Smoother Performance
• Storm Control

- Multiple Control Modes (kbps/ratio)
- Broadcast/Multicast/Unknown-Unicast Control
L2 a L2+ Features:

• DHCP Relay

- DHCP VLAN Relay

• DHCP L2 Relay
• Link Aggregation

- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports
per group

• Spanning Tree Protocol

- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter/Protect,
Root Protect

• Loopback Detection
• Flow Control

- 802.3x Flow Control

• Mirroring

- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Flow-Based
- Ingress/Egress/Both

• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED

L2 Multicast:

• 511 IPv4, IPv6 shared multicast groups
• IGMP Snooping

- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- Static Group Config

• Multicast VLAN Registration (MVR)
• Multicast Filtering
• MLD Snooping

- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config

• Limited IP Multicast (256 profilov a 16 entries per profilov)

IPv6 Support:

• IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications

- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP
VLAN:

• VLAN Group

- Max. 4K VLAN Groups

• 802.1Q tag VLAN
• MAC VLAN: 12 Entries
• Protocol VLAN
• GVRP
• Voice VLAN

Access Control List:

• Support up to 230 entries
• Time-Range

- Time Slice
- Week Time-Range
- Absolute Time-Range
- Holiday

• Time-based ACL
• MAC ACL

- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type

• IP ACL

- Source IP
- Destination IP
- IP Protocol
- TCP Flag
- TCP/UDP Source Port
- TCP/UDP Destination Port
- DSCP/IP TOS

• IPv6 ACL
• Combined ACL
• Rule Operation

- Permit/Deny

• Policy Action

- Mirror
- Rate Limit
- Redirect
- QoS Remark

• ACL Rules Binding

- Port Binding
- VLAN Binding

• Actions for flows

- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark
Security:

• AAA
• 802.1X

- Port-based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Support Radius authentication and accountability

• IP/IPv6-MAC Binding

- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection

• IP Source Guard

- 253 Entries
- Source IP+Source MAC

• IPv6 Source Guard

- 183 Entries
- Source IPv6 Address+Source MAC

• DoS Defend
• Static/Dynamic/Permanent Port Security

- Up to 64 MAC addresses per port

• Broadcast/Multicast/Unicast Storm Control

- kbps/ratio control mode

• Port Isolation
• Secure web management cez HTTPS with

SSLv3/TLS 1.2

• Secure Command Line Interface (CLI)

management with SSHv1/SSHv2

• IP/Port/MAC-based access control

Advanced Features:

• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule

MIBs:

• MIB II (RFC1213)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIBs
• RMON MIB(RFC1757, rmon 1,2,3,9)

MANAGEMENT
Omada App:
Yes, through

• Omada Cloud-Based Controller
• OC300
• OC200
• Omada Software Controller

Centralized Management:

• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Cloud Access:
Yes, through

• Omada Cloud-Based Controller
• OC300
• OC200
• Omada Software Controller

Zero-Touch Provisioning:
Yes. Requiring the use of Omada Cloud-Based Controller
Management Features:

• Web-based GUI
• Command Line Interface (CLI) cez telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log

OTHERS
Certification:
CE, FCC, RoHS
Package Contents:

• TL-SG2016P
• Power Adapter
• Installation Guide
• Rubber Feet

System Requirements:
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ alebo Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® alebo Linux.
Environment:

• Operating Temperature: 0–40 ? (32 – 104 ?);
• Storage Temperature: -40-70 ? (-40–158 ?)
• Operating Humidity: 10-90% RH non-condensing
• Storage Humidity: 5-90% RH non-condensing
