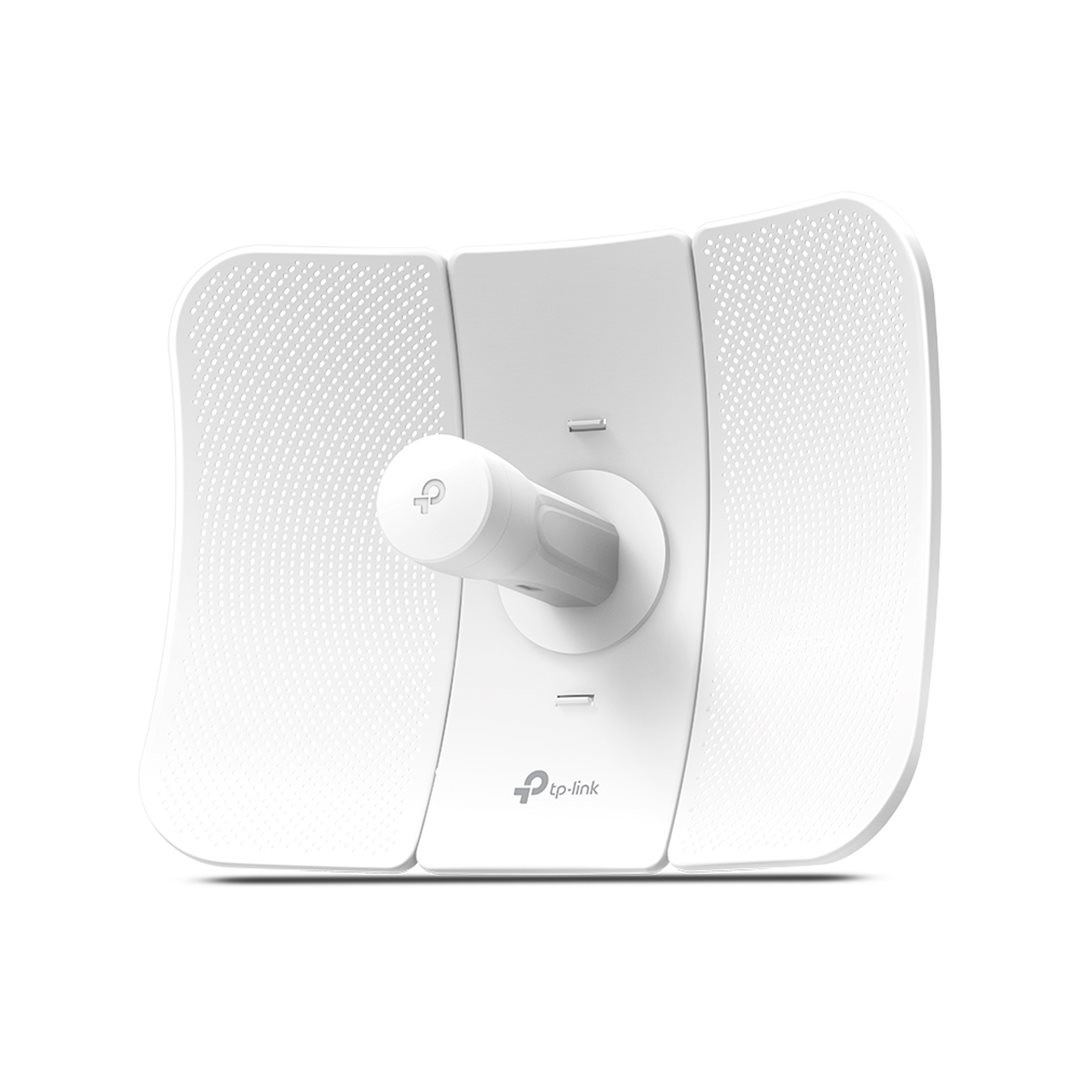

TP-Link CPE610 Outdoor 5GHz N300

Vonkajšia CPE anténa pre pásmo 5 GHz a šírku pásma 300 Mb / s so ziskom 23 dBi

Popis

• Rýchlosť bezdrôtového prenosu dát až 300 Mb / s v pásme 5 GHz
• Smerová anténa s vysokým ziskom 23 dBi, technológiou 2 × 2 MIMO a špeciálnym kovovým reflektorom je ideálny pre spojenie na veľké vzdialenosti
• Nová možnosť smerovania lúča, vylepšená latencie a potlačenie rušenia
• Inovatívna konštrukcia dielov, ktoré sa do seba zaklapnú, umožňuje rýchlu montáž, pričom vďaka pevnej konštrukcii odolá anténa CPE610 aj silným poryvom vetrov
• Anténa je vhodná do akéhokoľvek podnebie - puzdro s triedou ochranného krytia IP65 odolá vplyvom počasia a navyše má ochranu proti elektrostatickému výboju (ESD) až 15 kV a proti zásahu bleskom do 6 kV
• Technológia spoločnosti TP-Link s názvom Pharos MAXtream TDMA zlepšuje priestupnosť dát, kapacitu a výkon
• Systém Pharos Control dáva administrátorom možnosť využívať bezplatný centralizovaný systém riadenia
• Prevádzkové režimy: AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP)
• Pasívne napájanie PoE podporuje flexibilné nasadenie a uľahčuje inštaláciu

Technická špecifikácia

HARDWARE FEATURES

Processor

• Qualcomm 560MHz CPU, MIPS 74Kc

memory

• 64MB DDR2 RAM, 8MB Flash

interface

• 1 1 10 / 100Mbps Shielded Ethernet Port (LAN / POE)
• 1 Reset Button

Power Supply

• Passive Power over Ethernet via LAN (+ 4,5pins; -7,8pins)

Voltage range:

• 16-27VDC

Dimensions

• 360 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.) (No mount)

Antenna Gain

• 23dBi

Antenna Beamwidth

• 9 ° (Azimuth), 7 ° (Elevation)

Protection

• 15kV ESD Protection
• 6KV Lightning Protection

Enclosure

• Material: Outdoor PC Stabilized plastic

Weatherproof

• IP65 water and dust proof design

WIRELESS FEATURES

wireless Standards

• IEEE 802.11a / n

Proprietary Protocol

• TDMA Mode (with Pharos MAXtream enabled)

wireless Speeds

• Up to 300Mbps (40MHz, Dynamic)
• Up to 144.4Mbps (20MHz, Dynamic)
• Up to 72.2Mbps (10MHz, Dynamic)
• Up to 36.1Mbps (5MHz, Dynamic)

frequency

• 5.15 ~ 5.85GHz

Transmit Power

• Max. 29dB / 790mW (Adjustable power by 1dBm)

SOFTWARE FEATURES

operating Modes

• AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP Client)

Network Configuration

• WAN: Static / Dynamic / PPPoE / L2TP / PPTP
• LAN: Static / Dynamic / DHCP
• Forwarding: DMZ / ALG / UPnP / Virtual Server / Port Trigger
• Security: SPI Firewall / Ping Forbidden / VPN / DoS Protection
• Access Control
• Static Routing
• Bandwidth Control
• IP & MAC Binding

wireless Configurations

• Pharos MAXtream TDMA Technology
• Selectable Channel Width: 5/10/20 / 40MHz
• Auto Channel Selection
• Transmit Power Control
• Dynamic Frequency Selection (DFS)
• WDS Enable / Disable
• Security: WPA / WPA2, WPA-PSK / WPA2-PSK (AES / TKIP) Encryption,
• 64/128/152-bit WEP Encryption
• SSID Broadcast Enable / Disable
• Multi-SSID with VLAN Tagging (AP Mode only)
• Distance / ACK Timeout Setting
• Wireless MAC Address Filter
• Wireless Advanced:
• Beacon Interval / RTS Threshold / Fragmentation Threshold / DTIM Interval / AP Isolation / Short GI / Wi-Fi Multimedia

Management

• Discovery and Remote Management via Pharos Control application
• HTTP / HTTPS Web-based management
• System log
• SNMP Agent (v2c)
• Ping Watch Dog
• Dynamic DDNS
• SSH Server

System Tools

• Indicators: Signal Strength / Noise / Transmit CCQ / CPU / Memory
• Monitors: Throughput / Stations / Interfaces / ARP / Routes / WAN / DHCP
• Spectrum Analyzer
• Speed Test
• Ping
• Traceroute

System-level Optimizations

• Optimized IGMP Snooping / Proxy for multicast applications
• Hardvér watch dog

OTHERS
Certification

• CE, FCC, RoHS, IP65

Package Contents

• Outdoor Wireless CPE
• 24V 0.5A Passive PoE Adapter
• Pole Mounting Straps
• AC Power Cord
• Installation Guide

System Requirements

• Microsoft Windows 98SE, NT, 2000, XP, Vista ™ alebo Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
• Note: We recommend you to use one of following Web Browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE Browsers are not recommended.

Environment

• Operating Temperature: -40? ~ 70? (-40? ~ 158?)
• Storage Temperature: -40? ~ 70? (-40? ~ 158?)
• Operating Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 95% non-condensing
