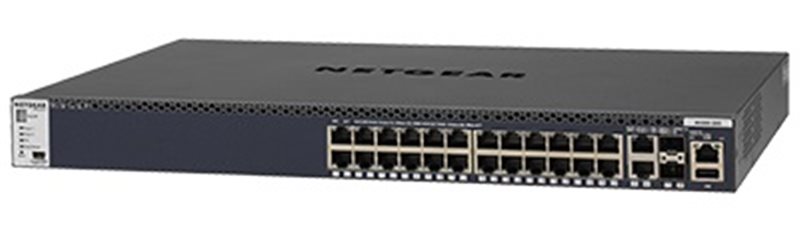

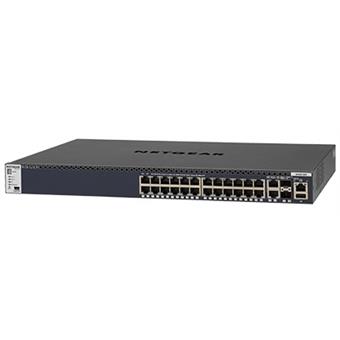

NETGEAR M4300-28G MANAGED SWITCH

NETGEAR M4300-28G (GSM4328S) - Stackable Managed Switch s 24x1G a 4x10G vrátane 2x10GBASE-T a 2xSFP+ Layer 3

Odkaz na web výrobcu: https://www.netgear.com/business/products/switches/managed/M4300 -28G.aspx#tab-overview

Technical specifications

• 24 Ports Copper 10M / 100M / 1G
• 2 Ports Copper 100M / 1G / 10G
• 2 Porty SFP+ 1G / 10G
• 1 Modular Bay s jedným (1) 150W Modular PSU included APS150W
• 128 Gps Switching Fabric
• Fixed Fan Front-to-Back 30.3dB
• Management Options : Ethernet: Out-of-band 1G port (Front)
• Console: RJ45 RS232 (Back)
• Console: Mini-USB (Front)
• Storage: USB (Front)
• Single-pane-of-glass NMS300 manažment platform with mass-configuration support
• Dual firmware image and configuration file for updates with minimum service interruption

Key features:

• Cost účinného 1G prístupového layeru v campus LAN sieťach, a vysokého výkonu 10G distribution layer for midsize organizations networks
• Zero Touch AV-over-IP s pre-configured L2 Multicast na všetkých 1G modeloch (1G AV encoders a decoders) a 10G modelov (SDVoE-ready)
• Advanced Layer 2, Layer 3 and Layer 4 feature set - no license required - including Policy Based Routing, RIP, VRRP, OSPF and PIM
• Innovatívne zmiešané "Spine and Leaf", 1G a 10G stacking s nonstop forwarding and hitless failover redundancy
• Low acoustics, polo-width 16-port a 24-port 10G modely môžu byť pripojené v jednom rakete priestoru pre redundant Top of Rack
• Up to 384 (Gigabit) portov, 768 (10 Gigabit) portov, 192 (40 Gigabit) portov alebo kombinácie v stock sen ako jeden “logický” switch
• 48- a 96-port 10G modely' ultra-low latencie a scalable table size with 128K MAC, 8K ARP/NDP, 4K VLANs, 12K routes
• Mixed Stack z 1G a 10G modelov provides 16K MAC, 2K ARP/NDP, 4K VLANs a 512 routes
• SDN-Ready OpenFlow 1.3 support for maximum investment protection

Softvér:

• Advanced classifier-based, time-based hardware implementation for L2 (MAC), L3 (IP) and L4 (UDP/TCP transport ports) security and prioritization
• Selectable Port-Channel / LAG (802.3ad - 802.1AX) L2/L3/L4 hashing pre fault toleranciu a load sharing with any typ Ethernet channeling
• Voice VLAN s SIP, H323 a SCCP protokolmi detekcie a LLDP-MED IP telefóny automatické QoS a VLAN konfigurácia
• Efficient authentication tiering with successive DOT1X, MAB a Captive Portal metódy pre streamlined BYOD
• Comprehensive IPv4/IPv6 statické a dynamické routing including Proxy ARP, OSPF, Policy-based routing and automatic 6-to-4 tunneling
• Enhanced IPv4/IPv6 multicast forwarding with IGMPv3/MLDv2 ASM a SSM Proxy a Control Packet Flooding protection
• High performance IPv4/IPv6 multicast routing with PIM timer accuracy and unhandled PIM (S,G,rpt) state machine events transitioning
• Advanced IPv4/IPv6 security implementation including malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation
• Innovative multi-vendor Auto-iSCSI capabilities for easier virtualization optimization

Availability:

• Dual redundant, modulárna power supplies equipping full width models contribute to business continuity management
• Vertikálne alebo horizontálne flexible stacking with management unit hitless failover and nonstop forwarding across operational stack members
• Spine and leaf architecture with every leaf switch (1G access switches) connecting to every spine switch (distributed 10G "core" switches)
• Stacking and distributed link aggregation allow for multi-resiliency with zero downtime and load balancing capabilities
• Link Dependency nové feature enables or disables ports sú založené na linke state of different ports
• Per VLAN Spanning Tree a Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP) offer interoperability with PVST+ infrastructures

Management:

• DHCP/BootP innovatívne auto-installation including firmware and configuration file upload automation
• Industry štandard SNMP, RMON, MIB, LLDP, AAA, sFlow a RSPAN remote mirroring implementation
• Service port for out-of-band Ethernet management (OOB)
• Standard RS232 straight-through serial RJ45 a Mini-USB porty pre local management console
• Štandard USB port pre lokálne skladovanie, záznamy, konfiguráciu alebo obrazový files
• Dual firmware image and configuration file for updates with minimum service interruption
• Industry štandard CLI (Command Line Interface) for IT admins used to other vendors commands
• Fully functional Web Console (GUI) pre IT admins, ktoré preferujú ľahko používať grafický interface
• Single-pane-of-glass NMS300 manažment platform with mass-configuration support
