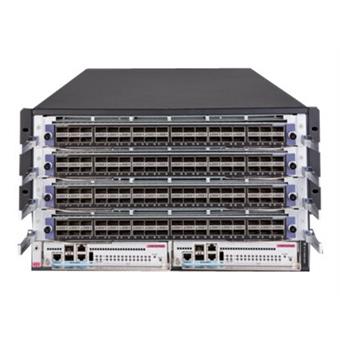

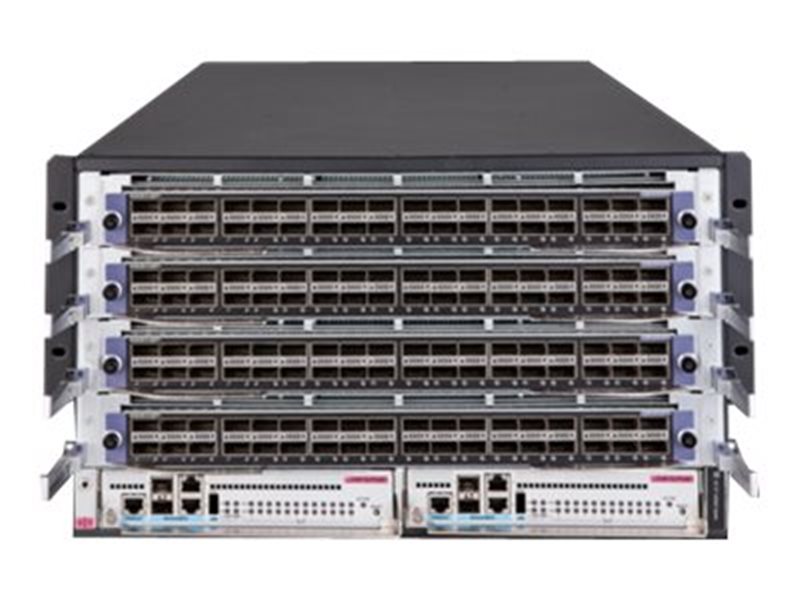

HPE 12904E Switch Chassis

HPE 12904E Switch Chassis

Device Type

• Switch - L3 - managed

Enclosure Type

• Rack-mountable 6U

Switching capacity

• 11.5 Tbps

Throughput

• 7.2 Bpps

Routing Protocol

• OSPF, EGP, RIP, BGP-4, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, PIM-SSM , Bidirectional PIM, MSDP, statický IPv4 routing, statický IPv6 routing, ECMP, policy-based routing (PBR), RIPng, MLDv2, MLD, BGP-4+, MPLS, Bidirectional Forwarding Detection (BFD), CIDR, BGP for IPv6, BGP+

Remote Management Protocol

• SNMP 1, SNMP 2, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, SSH-2

Compliant Standards

• IEEE 802.3, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 80. ac, IEEE 802.1s , IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qbb, IEEE 802.1Qaz

Power

• AC 120/230 V (50/60 Hz)

Dimensions (WxDxH)

• 17.3 in x 33.7 in x 10.4 in

Weight

• 79.37 lbs
